DejaOS Compatible Devices

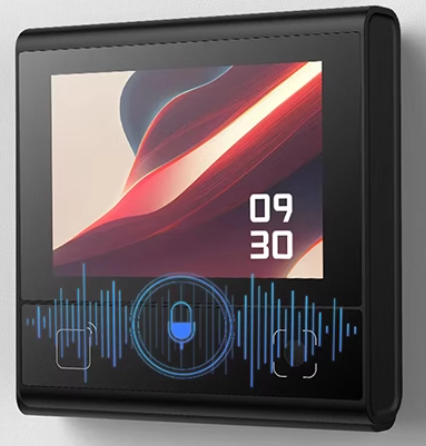

DW200
High-performance multi-functional board supporting various interfaces
Specifications:
- Memory: 64MB
- Storage: 128MB
- Display: 3.33" Capacitive Touch Screen
- Resolution: 320*480 IPS HD
- Interfaces: GPIO, RS485, Ethernet, WiFi(V20), Bluetooth, NFC
- Audio: Buzzer, WAV Audio Play
- Scanner: Barcode, QR Code
- NFC: M1, PSAM
- OS: DejaOS2.0

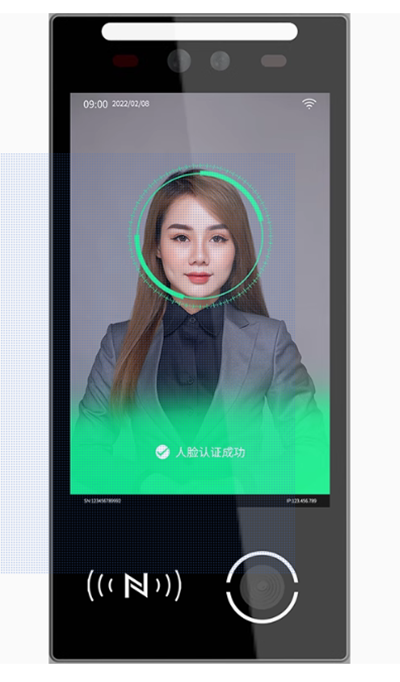

VF105
High-performance multi-functional board supporting facial recognition, big screen, and more interfaces
Specifications:
- Processor: ARM Cortex A7 MP2 1GHz
- Storage: 8GB
- Display: 8" Capacitive Touch Screen
- Resolution: 1280*800 IPS HD
- Interfaces: Facial Recognition, GPIO, RS485, Wiegand, Ethernet, WiFi, 4G, NFC
- Audio: Buzzer, WAV Audio Play, TTS
- Scanner: Barcode, QR Code
- NFC: M1, PSAM
- OS: DejaOS2.0
- Dimensions: 293.6*126*26.35mm

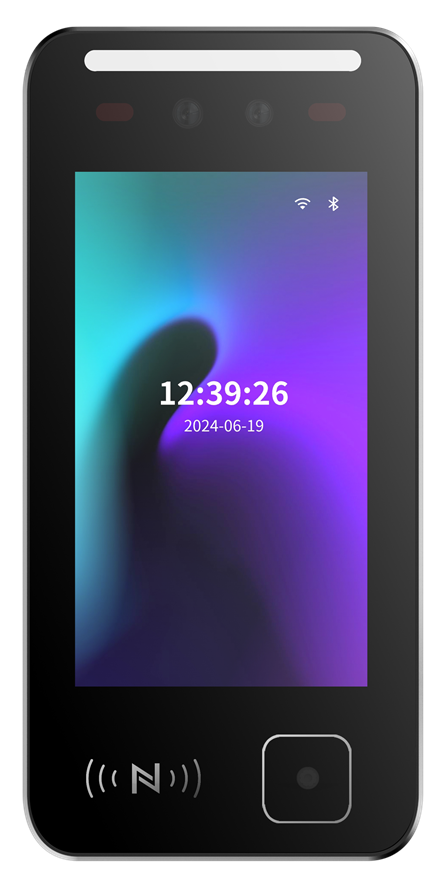

VF114
High-performance multi-functional board supporting facial recognition, big screen, and more interfaces
Specifications:
- Processor: ARM Cortex A7 MP2 1GHz
- Storage: 8GB
- Display: 6" Capacitive Touch Screen
- Resolution: 720*1280 IPS HD
- Interfaces: Facial Recognition, GPIO, RS485, Wiegand, Ethernet, WiFi, NFC
- Audio: Buzzer, WAV Audio Play, TTS
- Scanner: Barcode, QR Code
- NFC: M1, PSAM
- OS: DejaOS2.0
- Dimensions: 221*94*19.3mm
VF203
High-performance multi-functional board supporting facial recognition, big screen, and more interfaces
Specifications:
- Processor: ARM Cortex A7 1GHz
- Storage: 8GB
- Display: 7" Capacitive Touch Screen
- Resolution: 1024*600 IPS HD
- Interfaces: Facial Recognition, GPIO, RS485, Wiegand, Ethernet, WiFi, 4G, NFC
- Audio: Buzzer, WAV Audio Play, TTS
- NFC: M1, PSAM
- OS: DejaOS2.0
- Dimensions: 224*126*26.5mm

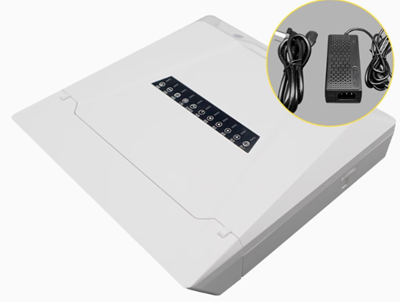

CC101
High-performance industrial controller supporting more interfaces
Specifications:
- Processor: ARM Cortex-M4
- Memory: 256MB DDR2
- Storage: 4GB eMMC
- Display: 2.4" TFT Display
- Interfaces: GPIO, UART, USB, WiFi, Bluetooth
- Dimensions: 80 x 60 x 12mm

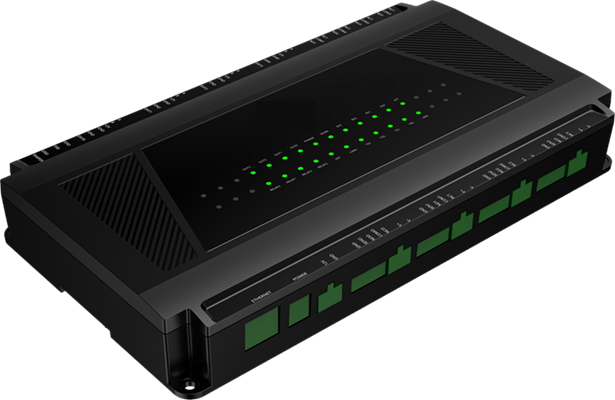

CC104
High-performance industrial controller supporting more interfaces
Specifications:
- Processor: ARM Cortex-A9 Quad Core
- Memory: 2GB DDR3
- Storage: 32GB eMMC
- Display: 10.1" Capacitive Touch Screen
- Interfaces: GPIO, UART, USB, Ethernet, WiFi, Bluetooth, CAN, RS485
- Dimensions: 150 x 100 x 20mm

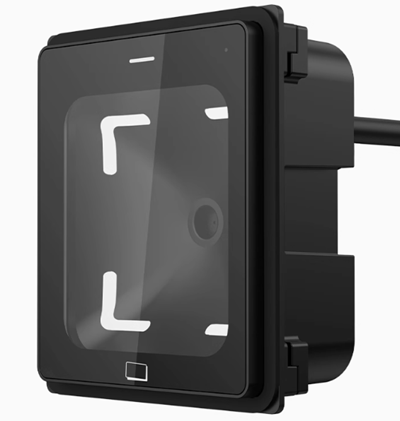

M350
High-performance industrial scanner supporting more interfaces
Specifications:
- Interfaces: RS485, Ethernet, NFC, Wiegand, TTL
- Audio: Buzzer
- Scanner: Barcode, QR Code
- NFC: M1
- OS: DejaOS2.0
- Dimensions: 88.3*88.3*38.35mm

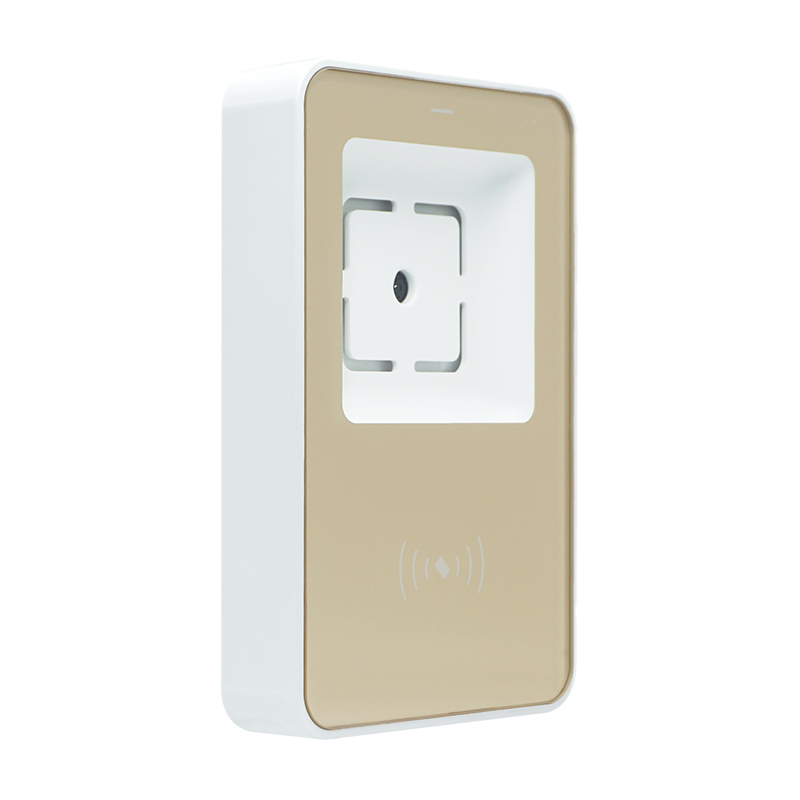

MU86
High-performance industrial scanner supporting more interfaces
Specifications:
- Interfaces: RS485, Ethernet, NFC, Wiegand
- Audio: Buzzer
- Scanner: Barcode, QR Code
- NFC: M1
- OS: DejaOS2.0
- Dimensions: 132mm*88mm*21mm
